Cloud Service Live Demonstration
Implementing the Internet of Things (IoT) with FreeRTOS
|
Demo Set Up
|
|
Software:
|
FreeRTOS+Nabto
|
|
Hardware:
|
Small microcontroller
|
|
Connection:
|
Ethernet
|
|
Situation:
|
Behind NAT firewall
|
Introduction
This page describes a FreeRTOS+Nabto based Internet Of Things demonstration that
is live and available for you to connect to.
The demo provides access to live data and the FreeRTOS command console.
The Creating Applications
web pages describe how the live demo is implemented. The
Hands-on Tutorial
web pages show you how to replicate the live demo on a local network using
the FreeRTOS Windows simulator.
Security
To ensure users can connect easily the live demo does not use
any encryption or authentication. A password is all that is required.
Connecting to the live demo
Instructions on connecting to the live demo are provided on the following
page links. A description of the live demo is provided on this page.
Functionality
The hardware the live demo is running on is sat in an office, and not
connected to anything other than the Ethernet. As it does not have real
world sensor or production data to display it instead displays internal
run time data, including RTOS task and networking statistics, and provides
an interface to the FreeRTOS command console.
The RTOS tick count provides a convenient source of constantly changing
live data. It is displayed as a constantly incrementing value inline
within a paragraph of text, and on a slider widget. The slider only
shows the last 16-bits of the tick count value. If it showed the whole
32-bits then the resolution would be such that the slider would not
appear to be moving.

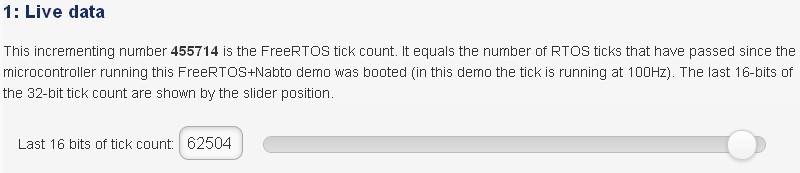

Screen shot from the live demo: The portion of the web page that shows live data
Statistics from the FreeRTOS+UDP network stack provide a convenient source
of data that can be queried directly from the remote embedded device.
To query a data value, first select the data you wish to query using
one of the three radio buttons, then click or touch the "Query Value" button. The returned value is displayed in the button
caption.

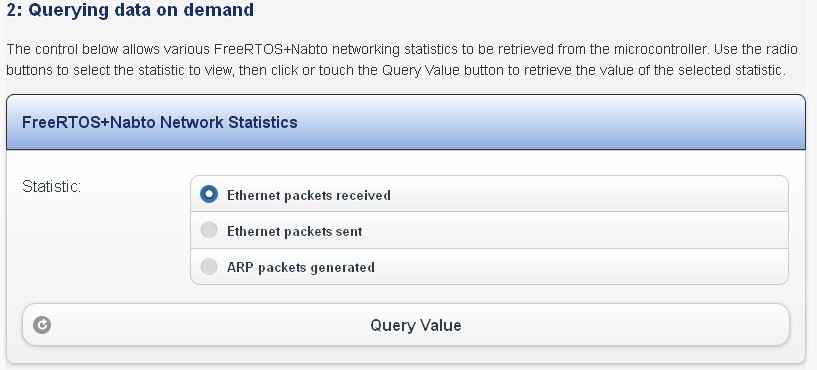

Screen shot from the live demo: Querying specific data values
FreeRTOS+CLI
is an extensible command line interface that allows application
developers to register their own commands. FreeRTOS+Nabto allows the
command line interface to be accessed across a local network or across
the Internet.
Enter help where it says "Enter Command Here", then either press
enter or click or touch the Send Command button to see a list of commands
that are registered with FreeRTOS+CLI for use with this demo.
[Note the ping command demonstrates DNS functionality by
translating URLs into IP addresses - but ping replies are not displayed]

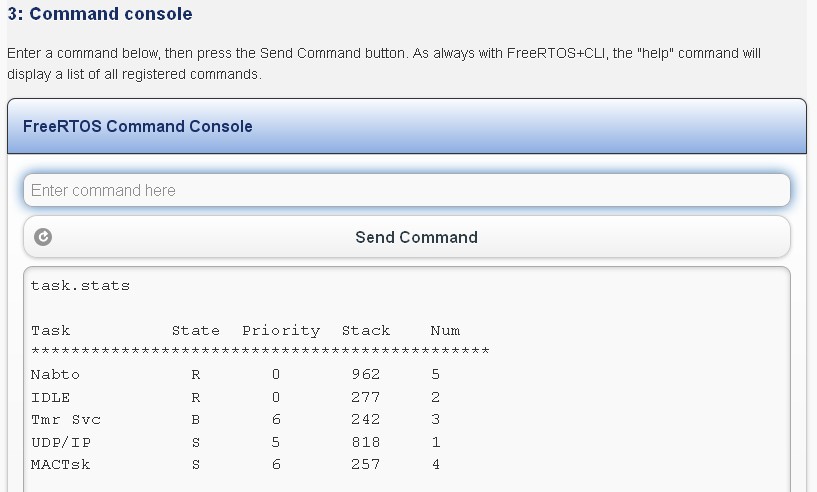

Screen shot from the live demo: The output generated by running the task.stats command

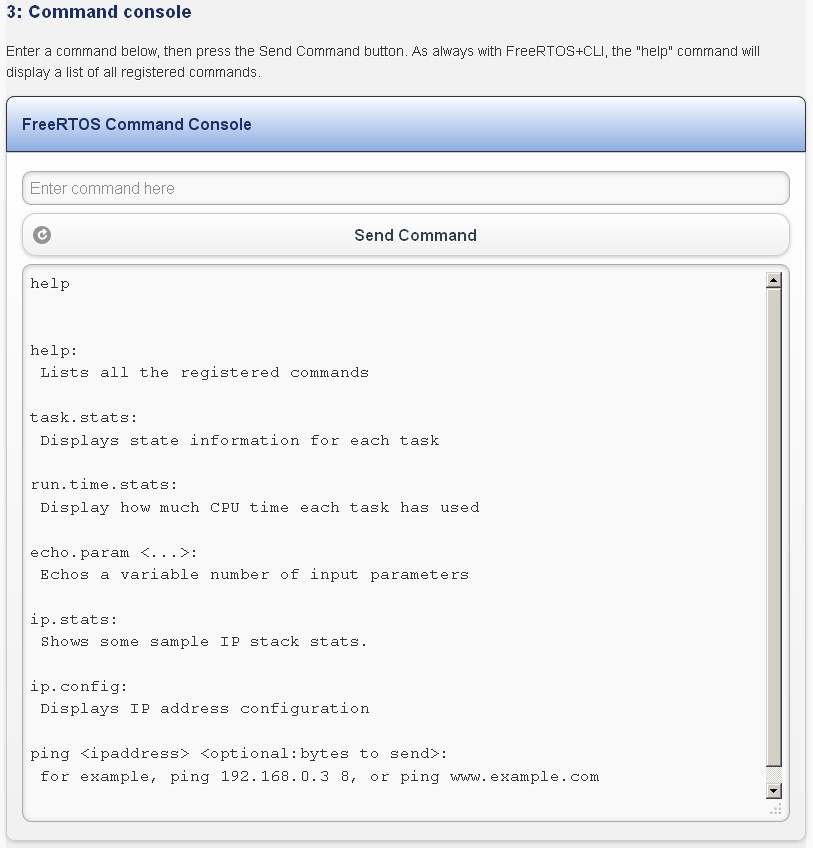

Screen shot from the live demo: The output generated by running the help command
